Plan your pergola

The details behind your pergola.

Compare roof control, lighting and sizes. Then check your model’s measurements, base and installation needs so the frame, accessories and furniture fit comfortably.

Start with your model.

All three models have powder-coated aluminium frames, adjustable louvres and concealed drainage. Choose the roof control and size that suit your space.

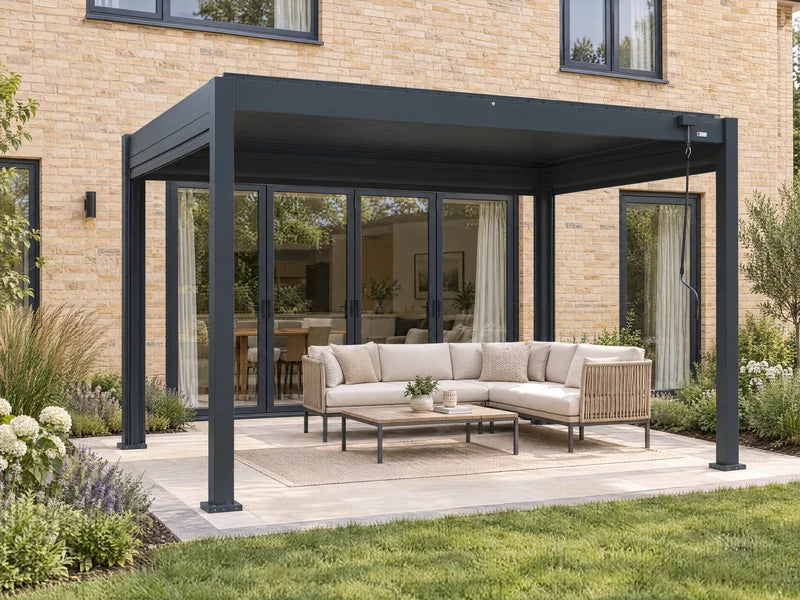

Aura pergola

Manual roof

Aura

Nominal sizes
  • 3×3m
  • 3×4m
Integrated lighting
No integrated lighting
Compatible sides
Compatible manual screens and slatted walls for nominal 3m and 4m openings.
Open Aura 3D builder

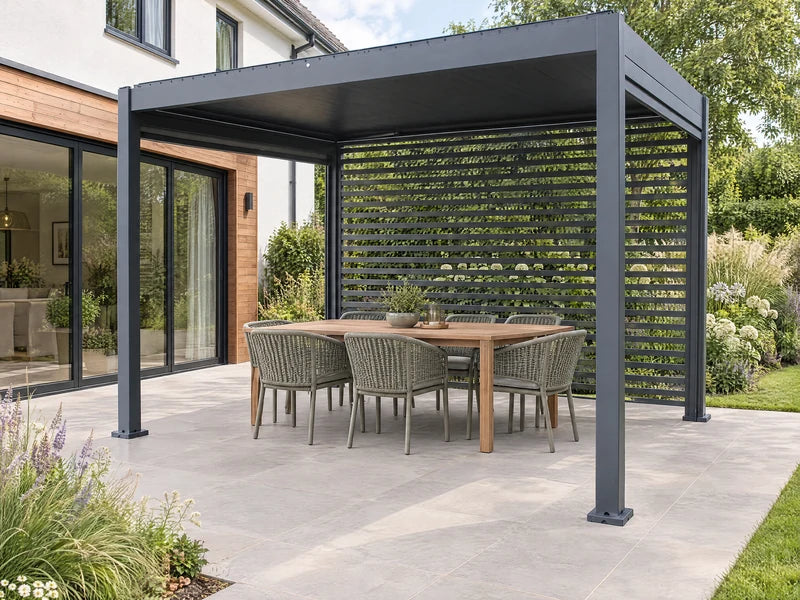

Como pergola

Electric roof

Como

Nominal sizes
  • 3×3m
  • 3×4m
Integrated lighting
Dimmable white lighting
Compatible sides
Compatible manual or electric screens and slatted walls for 3m and 4m openings.
Open Como 3D builder

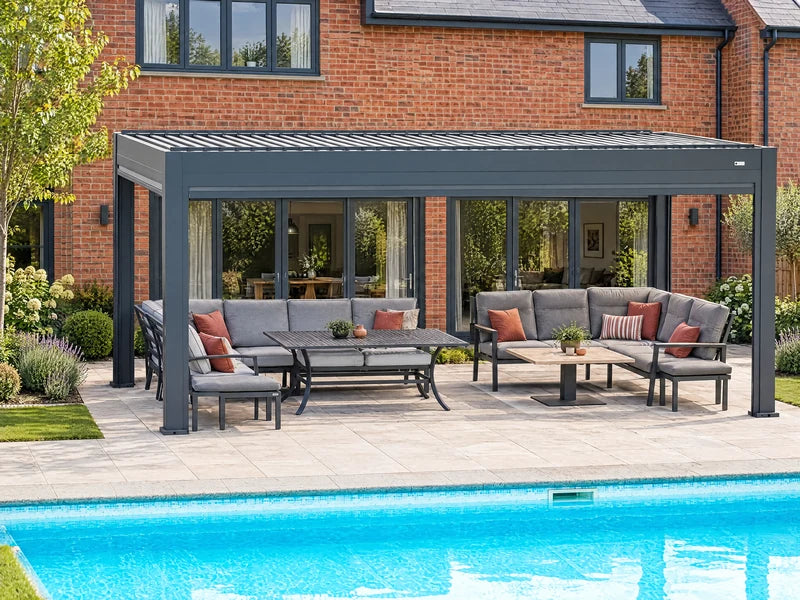

Tora pergola

Electric roof + RGB

Tora

Nominal sizes
  • 4×4m
  • 5×3m
  • 5×4m
  • 6×3m
  • 6×4m
  • 8×4m
Integrated lighting
White and RGB lighting
Compatible sides
Screens by opening width; slatted walls for compatible 3m and 4m openings.
Open Tora 3D builder

Interactive planning tool

Dimensions for your space.

Select your model and size to explore its measurements and planning drawings.

Your selected size

Aura · 3 × 3m

Open Aura 3D builder

Base preparation guide

Aura · 3 × 3m · PDF · 3 pages

Download base guide
Outer frame
2904 × 2904mm
Footplate footprint
2964 × 2964mm
Overall height
2503mm
Clear height
2330mm
Post size
120 × 120mm
Footplate size
180 × 180mm
Between posts
2664 × 2664mm
Post layout
4posts

Plan view

Plan view — The full footprint, including footplates. Posts are shown in green. 2964 mm 2964 mm
The full footprint, including footplates. Posts are shown in green.

Front view

Front view — Overall height and the clear height beneath the frame, with the roof closed. 2503 mm 2330 mm Roof closed
Overall height and the clear height beneath the frame, with the roof closed.

Footplate and fixings

Footplate and fixings — Post and four base-fixing positions. Square the frame before marking out. 180 mm
Post and four base-fixing positions. Square the frame before marking out.

Leave space above the frame for opening louvres. Check roof clearance with your installer before positioning the pergola.

Drawings are a planning guide. Check the assembled frame and actual footplates before drilling, and allow room around the base.

Your selected size

Aura · 3 × 4m

Open Aura 3D builder

Base preparation guide

Aura · 3 × 4m · PDF · 3 pages

Download base guide
Outer frame
3945 × 2904mm
Footplate footprint
4005 × 2964mm
Overall height
2503mm
Clear height
2330mm
Post size
120 × 120mm
Footplate size
180 × 180mm
Between posts
3705 × 2664mm
Post layout
4posts

Plan view

Plan view — The full footprint, including footplates. Posts are shown in green. Diagonal between inside post corners: 4563.3 mm. 4563.3 mm 4005 mm 2964 mm
Footprint includes footplates. The diagonal runs between the inside corners of opposite posts.

Front view

Front view — Overall height and the clear height beneath the frame, with the roof closed. 2503 mm 2330 mm Roof closed
Overall height and the clear height beneath the frame, with the roof closed.

Footplate and fixings

Footplate and fixings — Post and four base-fixing positions. Square the frame before marking out. 180 mm
Post and four base-fixing positions. Square the frame before marking out.

Leave space above the frame for opening louvres. Check roof clearance with your installer before positioning the pergola.

Drawings are a planning guide. Check the assembled frame and actual footplates before drilling, and allow room around the base.

Your selected size

Como · 3 × 3m

Open Como 3D builder

Base preparation guide

Como · 3 × 3m · PDF · 3 pages

Download base guide
Outer frame
2904 × 2904mm
Footplate footprint
2964 × 2964mm
Overall height
2503mm
Clear height
2330mm
Post size
120 × 120mm
Footplate size
180 × 180mm
Between posts
2664 × 2664mm
Post layout
4posts

Plan view

Plan view — The full footprint, including footplates. Posts are shown in green. Diagonal between inside post corners: 3767.5 mm. 3767.5 mm 2964 mm 2964 mm
Footprint includes footplates. The diagonal runs between the inside corners of opposite posts.

Front view

Front view — Overall height and the clear height beneath the frame, with the roof closed. 2503 mm 2330 mm Roof closed
Overall height and the clear height beneath the frame, with the roof closed.

Footplate and fixings

Footplate and fixings — Post and four base-fixing positions. Square the frame before marking out. 180 mm
Post and four base-fixing positions. Square the frame before marking out.

Leave space above the frame for opening louvres. Check roof clearance with your installer before positioning the pergola.

Drawings are a planning guide. Check the assembled frame and actual footplates before drilling, and allow room around the base.

Your selected size

Como · 3 × 4m

Open Como 3D builder

Base preparation guide

Como · 3 × 4m · PDF · 3 pages

Download base guide
Outer frame
3945 × 2904mm
Footplate footprint
4005 × 2964mm
Overall height
2503mm
Clear height
2330mm
Post size
120 × 120mm
Footplate size
180 × 180mm
Between posts
3705 × 2664mm
Post layout
4posts

Plan view

Plan view — The full footprint, including footplates. Posts are shown in green. Diagonal between inside post corners: 4563.3 mm. 4563.3 mm 4005 mm 2964 mm
Footprint includes footplates. The diagonal runs between the inside corners of opposite posts.

Front view

Front view — Overall height and the clear height beneath the frame, with the roof closed. 2503 mm 2330 mm Roof closed
Overall height and the clear height beneath the frame, with the roof closed.

Footplate and fixings

Footplate and fixings — Post and four base-fixing positions. Square the frame before marking out. 180 mm
Post and four base-fixing positions. Square the frame before marking out.

Leave space above the frame for opening louvres. Check roof clearance with your installer before positioning the pergola.

Drawings are a planning guide. Check the assembled frame and actual footplates before drilling, and allow room around the base.

Your selected size

Tora · 4 × 4m

Open Tora 3D builder

Base preparation guide

Tora · 4 × 4m · PDF · 3 pages

Download base guide
Outer frame
4005 × 4005mm
Footplate footprint
4065 × 4065mm
Overall height
2523mm
Clear height
2330mm
Post size
150 × 150mm
Footplate size
210 × 210mm
Between posts
3705 × 3705mm
Post layout
4posts

Plan view

Plan view — The full footprint, including footplates. Posts are shown in green. Diagonal between inside post corners: 5239.7 mm. 5239.7 mm 4065 mm 4065 mm
Footprint includes footplates. The diagonal runs between the inside corners of opposite posts.

Front view

Front view — Overall height and the clear height beneath the frame, with the roof closed. 2523 mm 2330 mm Roof closed
Overall height and the clear height beneath the frame, with the roof closed.

Footplate and fixings

Footplate and fixings — Post and four base-fixing positions. Square the frame before marking out. 210 mm
Post and four base-fixing positions. Square the frame before marking out.

Leave space above the frame for opening louvres. Check roof clearance with your installer before positioning the pergola.

Drawings are a planning guide. Check the assembled frame and actual footplates before drilling, and allow room around the base.

Your selected size

Tora · 5 × 3m

Open Tora 3D builder

Base preparation guide

Tora · 5 × 3m · PDF · 3 pages

Download base guide
Outer frame
5000 × 2964mm
Footplate footprint
5060 × 3024mm
Overall height
2523mm
Clear height
2330mm
Post size
150 × 150mm
Footplate size
210 × 210mm
Between posts
4700 × 2664mm
Post layout
4posts

Plan view

Plan view — The full footprint, including footplates. Posts are shown in green. 5060 mm 3024 mm
The full footprint, including footplates. Posts are shown in green.

Front view

Front view — Overall height and the clear height beneath the frame, with the roof closed. 2523 mm 2330 mm Roof closed
Overall height and the clear height beneath the frame, with the roof closed.

Footplate and fixings

Footplate and fixings — Post and four base-fixing positions. Square the frame before marking out. 210 mm
Post and four base-fixing positions. Square the frame before marking out.

Leave space above the frame for opening louvres. Check roof clearance with your installer before positioning the pergola.

Drawings are a planning guide. Check the assembled frame and actual footplates before drilling, and allow room around the base.

Your selected size

Tora · 5 × 4m

Open Tora 3D builder

Base preparation guide

Tora · 5 × 4m · PDF · 3 pages

Download base guide
Outer frame
5000 × 4005mm
Footplate footprint
5060 × 4065mm
Overall height
2523mm
Clear height
2330mm
Post size
150 × 150mm
Footplate size
210 × 210mm
Between posts
4700 × 3705mm
Post layout
4posts

Plan view

Plan view — The full footprint, including footplates. Posts are shown in green. 5060 mm 4065 mm
The full footprint, including footplates. Posts are shown in green.

Front view

Front view — Overall height and the clear height beneath the frame, with the roof closed. 2523 mm 2330 mm Roof closed
Overall height and the clear height beneath the frame, with the roof closed.

Footplate and fixings

Footplate and fixings — Post and four base-fixing positions. Square the frame before marking out. 210 mm
Post and four base-fixing positions. Square the frame before marking out.

Leave space above the frame for opening louvres. Check roof clearance with your installer before positioning the pergola.

Drawings are a planning guide. Check the assembled frame and actual footplates before drilling, and allow room around the base.

Your selected size

Tora · 6 × 3m

Open Tora 3D builder

Base preparation guide

Tora · 6 × 3m · PDF · 3 pages

Download base guide
Outer frame
5778 × 2964mm
Footplate footprint
5838 × 3024mm
Overall height
2523mm
Clear height
2330mm
Post size
150 × 150mm
Footplate size
210 × 210mm
Between posts
5478 × 2664mm
Post layout
4posts

Plan view

Plan view — The full footprint, including footplates. Posts are shown in green. 5838 mm 3024 mm
The full footprint, including footplates. Posts are shown in green.

Front view

Front view — Overall height and the clear height beneath the frame, with the roof closed. 2523 mm 2330 mm Roof closed
Overall height and the clear height beneath the frame, with the roof closed.

Footplate and fixings

Footplate and fixings — Post and four base-fixing positions. Square the frame before marking out. 210 mm
Post and four base-fixing positions. Square the frame before marking out.

Leave space above the frame for opening louvres. Check roof clearance with your installer before positioning the pergola.

Drawings are a planning guide. Check the assembled frame and actual footplates before drilling, and allow room around the base.

Your selected size

Tora · 6 × 4m

Open Tora 3D builder

Base preparation guide

Tora · 6 × 4m · PDF · 3 pages

Download base guide
Outer frame
5778 × 4005mm
Footplate footprint
5838 × 4065mm
Overall height
2523mm
Clear height
2330mm
Post size
150 × 150mm
Footplate size
210 × 210mm
Between posts
5478 × 3705mm
Post layout
4posts

Plan view

Plan view — The full footprint, including footplates. Posts are shown in green. Diagonal between inside post corners: 6613.3 mm. 6613.3 mm 5838 mm 4065 mm
Footprint includes footplates. The diagonal runs between the inside corners of opposite posts.

Front view

Front view — Overall height and the clear height beneath the frame, with the roof closed. 2523 mm 2330 mm Roof closed
Overall height and the clear height beneath the frame, with the roof closed.

Footplate and fixings

Footplate and fixings — Post and four base-fixing positions. Square the frame before marking out. 210 mm
Post and four base-fixing positions. Square the frame before marking out.

Leave space above the frame for opening louvres. Check roof clearance with your installer before positioning the pergola.

Drawings are a planning guide. Check the assembled frame and actual footplates before drilling, and allow room around the base.

Your selected size

Tora · 8 × 4m

Open Tora 3D builder

Base preparation guide

Tora · 8 × 4m · PDF · 3 pages

Download base guide
Outer frame
7860 × 4005mm
Footplate footprint
7920 × 4065mm
Overall height
2523mm
Clear height
2330mm
Post size
150 × 150mm
Footplate size
210 × 210mm
Between posts, per bay
3705 × 3705mm
Post layout
6posts

Plan view

Plan view — The full footprint, including footplates. Posts are shown in green. 7920 mm 4065 mm
The full footprint, including footplates. Posts are shown in green.

Front view

Front view — Overall height and the clear height beneath the frame, with the roof closed. 2523 mm 2330 mm Roof closed
Overall height and the clear height beneath the frame, with the roof closed.

Footplate and fixings

Footplate and fixings — Post and four base-fixing positions. Square the frame before marking out. 210 mm
Post and four base-fixing positions. Square the frame before marking out.

Leave space above the frame for opening louvres. Check roof clearance with your installer before positioning the pergola.

Drawings are a planning guide. Check the assembled frame and actual footplates before drilling, and allow room around the base.

Plan the space around it.

Compare nominal sizes first, then use your model’s exact measurements and installation instructions to plan the base, clearance and compatible accessories.

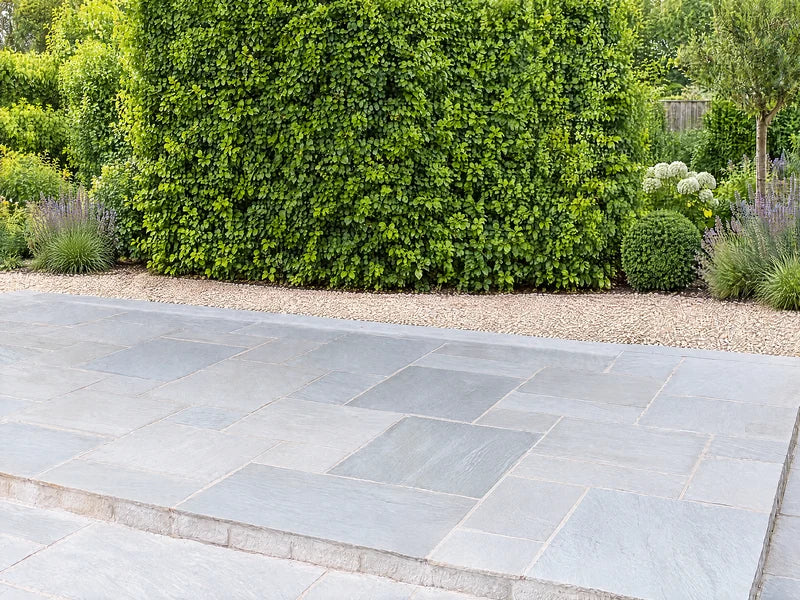

Clear grey stone patio before the pergola is installed
A clear base

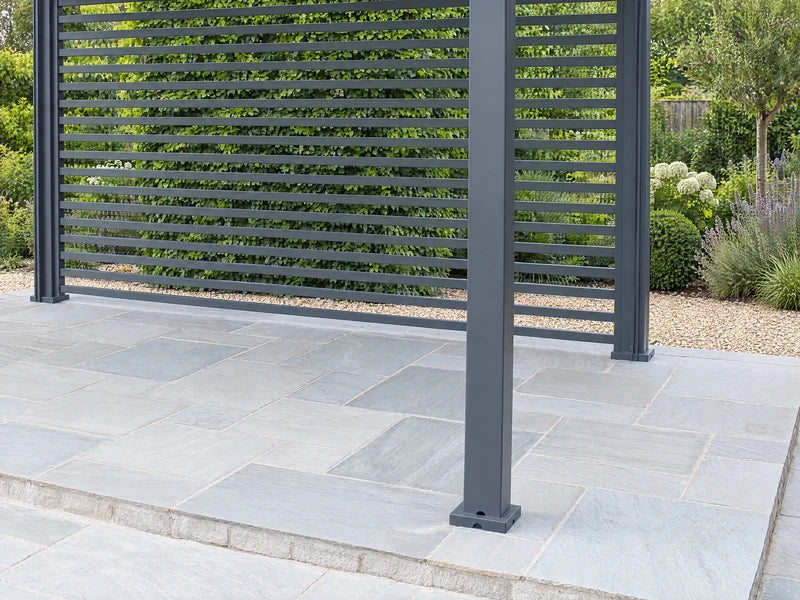

Aluminium pergola posts and footplates on the same grey stone patio
Posts in place
Plan the frame footprint, supporting base and the space around your pergola.

Frame and footplates.

Select your size in the 3D builder and turn on Measurements. Check the footprint, posts and footplates, then read the matching manual before marking out or drilling.

Surface and support.

Each post needs firm support and suitable fixings. Check the surface and structure beneath it, then review the base guide with your installer before arranging assembly.

Space and clearance.

Leave room for furniture, doors and access around the pergola. Check louvre clearance, keep drainage outlets clear and use the screen guide to plan the sides.

Power and lighting.

Como and Tora need power for roofs and lights; electric screens and heaters do too. Use a qualified electrician, as pergola installation excludes electrical wiring.

Use the matching installation instructions.

Find pergola manuals, accessory instructions and base requirements in one place. Match each document to your model and size, or ask our team to help.

Open installation instructions
