LuxSol Tora 5m x 3m electric pergola in daylight
Tora collection Electric + lighting

Tora electric aluminium pergola

A substantial aluminium frame with 150mm square posts, wide double-layered louvres, white roof lighting and an RGB surround.

  • 4 × 4m £6,095.00£9,377.00
  • 5 × 3m £6,106.00£9,395.00
  • 5 × 4m £7,195.00£11,069.23
  • 6 × 3m £6,995.00£10,762.00
  • 6 × 4m £8,295.00£12,761.00
  • 8 × 4m £10,795.00£16,607.69
£6,095.00£9,377.00

4 × 4m · electric roof and lighting included · accessories added below

Available to order · confirm delivery timing before purchase
  • 160mm double-layered louvres
  • White louvre + RGB surround
  • Concealed drainage
  • 150mm square posts

Make your Tora yours.

Choose your sides and extras. See your design update as you go.

Loading your options…

Loading your 3D pergola…
Tora collection Electric + lighting

Tora electric aluminium pergola

A substantial aluminium frame with 150mm square posts, wide double-layered louvres, white roof lighting and an RGB surround.

  • 4 × 4m £6,095.00£9,377.00
  • 5 × 3m £6,106.00£9,395.00
  • 5 × 4m £7,195.00£11,069.23
  • 6 × 3m £6,995.00£10,762.00
  • 6 × 4m £8,295.00£12,761.00
  • 8 × 4m £10,795.00£16,607.69
£6,095.00£9,377.00

4 × 4m · electric roof and lighting included · accessories added below

Available to order
  • 160mm double-layered louvres
  • White louvre + RGB surround
  • Concealed drainage
  • 150mm square posts
  • Powder-coated aluminium frame
  • Optional privacy screens

Product information

About the Tora

The LuxSol Tora is the largest and most substantial pergola in the range, with 150mm posts, a deeper roof beam and electric adjustable louvres. Integrated white and RGB lighting helps the structure move from daytime shade to evening entertaining.

Six footprints are available, including wide single-bay formats and the 8 × 4m double-bay design. The guided builder only presents side accessories that fit the selected opening.

Size & specifications

4 × 4m

Overall footprint
4065 × 4065mm
Clear opening
3705 × 3705mm
Overall height
2523mm

5 × 3m

Overall footprint
5060 × 3024mm
Clear opening
4700 × 2664mm
Overall height
2523mm

5 × 4m

Overall footprint
5060 × 4065mm
Clear opening
4700 × 3705mm
Overall height
2523mm

6 × 3m

Overall footprint
5838 × 3024mm
Clear opening
5478 × 2664mm
Overall height
2523mm

6 × 4m

Overall footprint
5838 × 4065mm
Clear opening
5478 × 3705mm
Overall height
2523mm

8 × 4m

Overall footprint
7920 × 4065mm
Clear opening
× 3705mm
Overall height
2523mm

Confirm the full footprint, level base and working clearance with the installation team before ordering.

Construction and specifications
Frame
Powder-coated aluminium
Finish
RAL 7016 anthracite grey
Posts
150 × 150 × 2.0mm aluminium posts
Roof beams
190 × 124.28 × 2.5mm beam with built-in gutter
Louvres
Roof control
Electric opening louvres with remote control
Drainage
Built-in beam gutter with concealed drainage through the posts
What is included
  • Aluminium posts, deep beams and electric roof louvres
  • Built-in gutters and drainage components
  • Roof motor or motors, controls and integrated white/RGB lighting
  • Base plates, fixings and assembly hardware
  • Size-specific assembly instructions
Installation & site preparation

Install on a flat, level and load-bearing base prepared to the exact footprint for the selected size. Tora’s heavier components and larger spans require competent installers, appropriate lifting equipment and secure anchoring in accordance with the size-specific instructions.

Professional installation is available. Granite or porcelain surfaces may require specialist drilling and an installation surcharge. The 8 × 4m model uses six posts and two roof bays.

Testing and performance

The GR9700 Tora sample passed SGS testing at Beaufort 10 wind conditions and a distributed top load of 120kg/m².

These results relate to the specific test sample and test setup. Correct anchoring, base preparation, electrical installation and safe operation remain essential.

Wind testGR9700 sample passed an SGS Beaufort 10 wind-resistance test

Top-load testGR9700 sample passed an SGS 120kg/m² distributed top-load test

Care and maintenance

Keep the roof, gutters and post drainage channels clear of leaves and debris. Clean the powder-coated frame with clean water, a soft cloth and a mild non-abrasive detergent.

Do not use pressure washers, abrasive pads or aggressive chemicals. Check fixings, seals, drainage, cables and moving components periodically, and leave the louvres open when severe wind or snow is forecast.

Delivery & availability

Tora is supplied in multiple long, very heavy cartons. Confirm vehicle access, unloading arrangements and a clear route to the installation area before dispatch.

Professional installation is recommended. If arranging installation separately, ensure the team has enough people and appropriate lifting equipment for the selected size. Accessories may arrive in separate cartons.

Make your Tora yours.

Choose your sides and extras. See your design update as you go.

LET’S TALK IT THROUGH

Discuss your build.

Tell us how to reach you. Your full build is attached automatically, and you can download your PDF summary after sending your enquiry.

Your design is saved

Your build total

including VAT

Full build attached

Build reference

Tilt the roof for sun or shade
Switch on the lights after dark

Tilt the Tora electric aluminium pergola’s 160 mm louvres by remote for sun or shade. Use the white louvre LEDs and colour-changing surround separately or together. Concealed gutters drain through 150 mm square posts in the powder-coated anthracite frame.

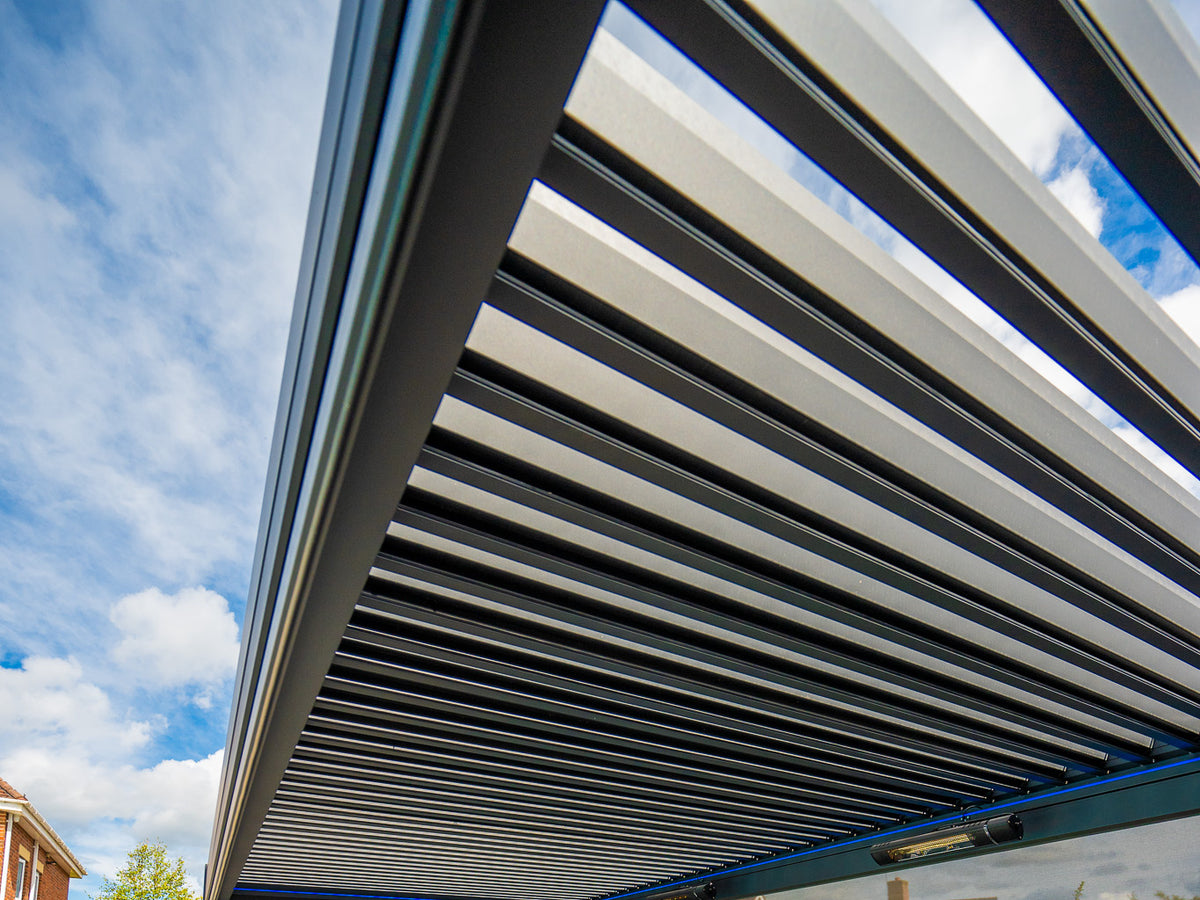

Tilted Tora roof louvres viewed from below, AI-enhanced from a real installation photo

Electric roof

Use the remote to tilt the roof louvres for more sunshine or shade.

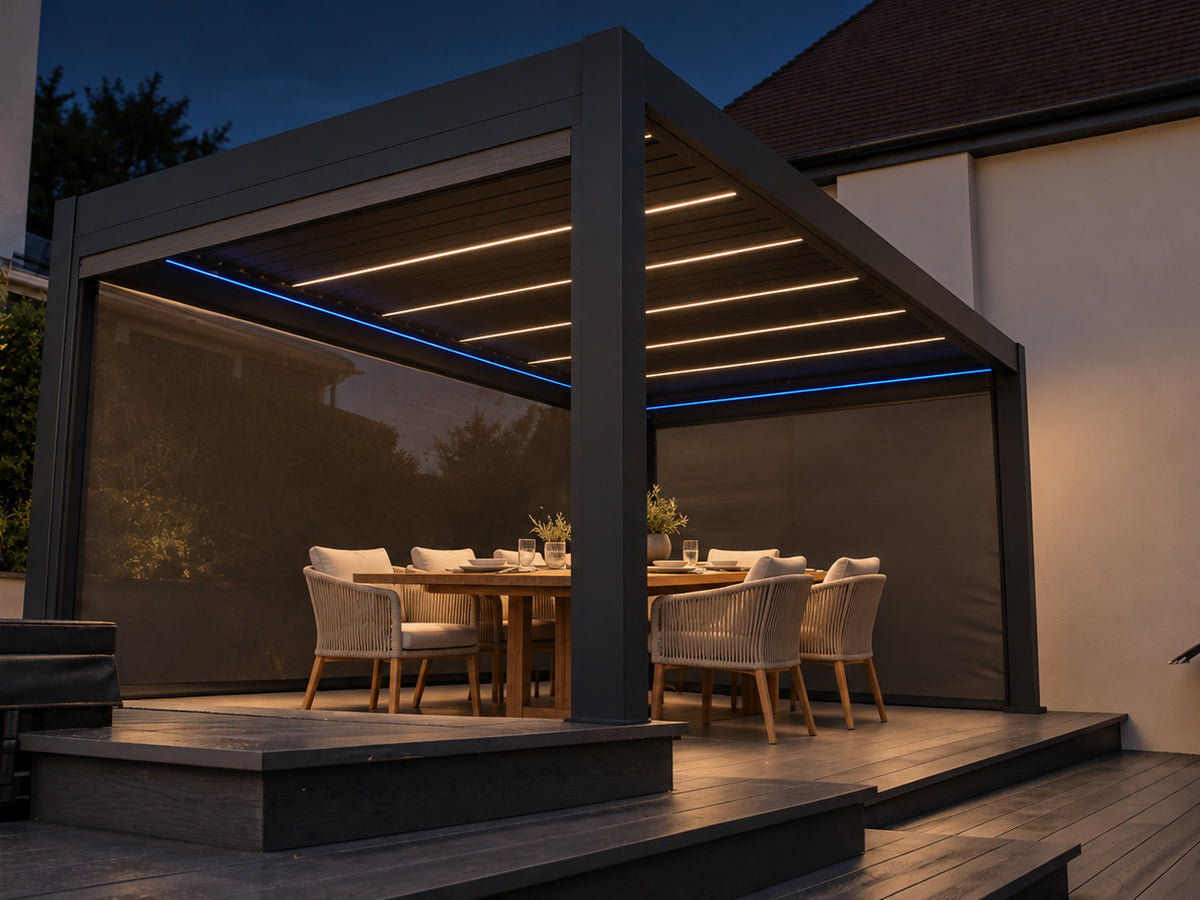

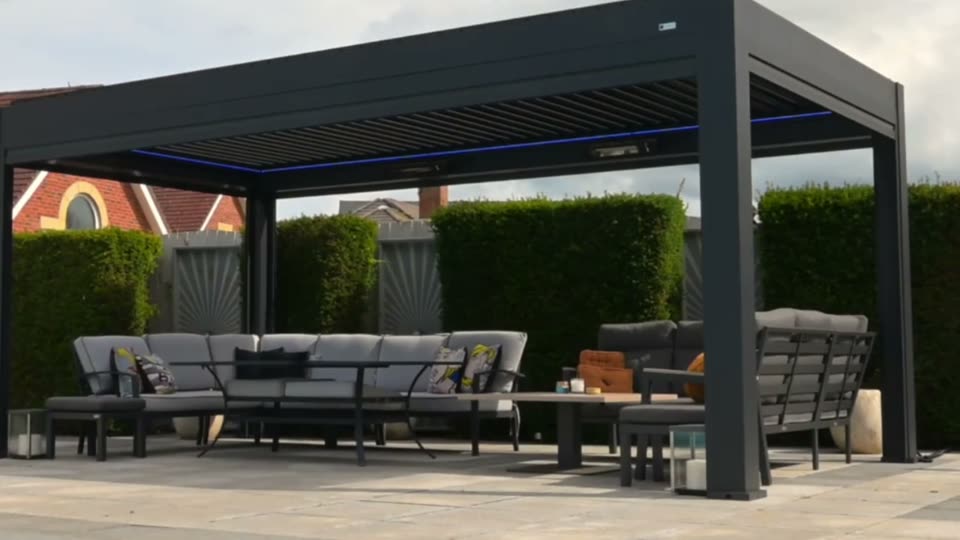

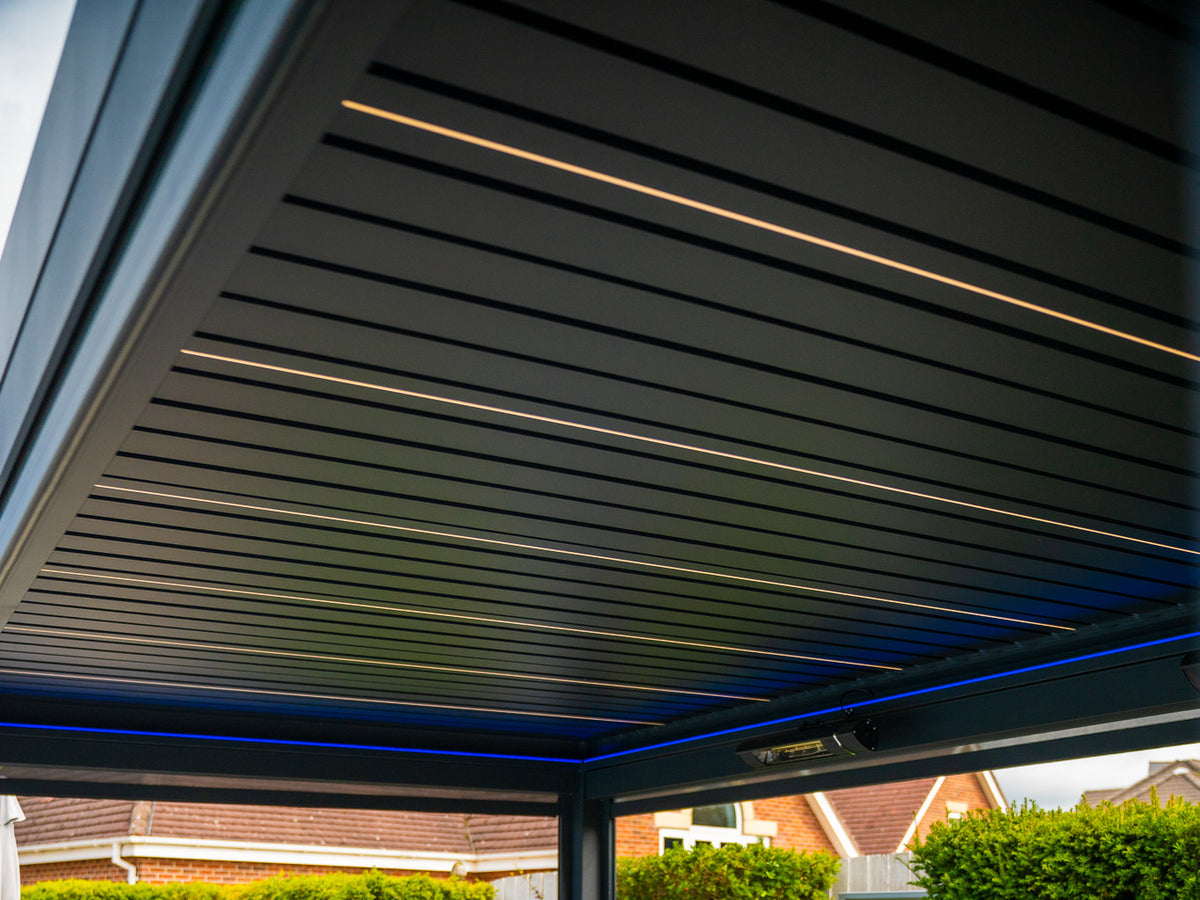

Tora white louvre LEDs and blue perimeter lighting, AI-enhanced from a real installation photo

Built-in lighting

Choose white roof LEDs, a colour-changing surround or both together.

Water flowing from the Tora post-foot outlet, AI-generated using a real product photo as reference

Hidden drainage

Hidden gutters carry rainwater through the posts to outlets below.

Tora square aluminium post and adjoining beam joints, AI-generated using a real product photo as reference

Aluminium frame

A powder-coated frame with 150 mm square posts defines your space.

Choose the right pergola size

Find the Tora size that suits your patio, furniture and everyday plans. Compare the drawings, check the dimensions and choose your fit.

Choose your size
Tora 6 × 4 m original frame and height drawing

Make more of your patio.

A generous footprint for outdoor dining or a spacious lounge setup, with four corner posts that keep the long sides open.

Build your 6 × 4 m Tora
Measurements & drawings
Footprint including feet
5,838 × 4,065 mm
Clear space between posts
5,478 × 3,705 mm
Height with roof closed
2,523 mm

Allow 2,596.4 mm overhead for the louvres to move fully.

Download drawings PDF ↗

Add screens, slatted walls and heating

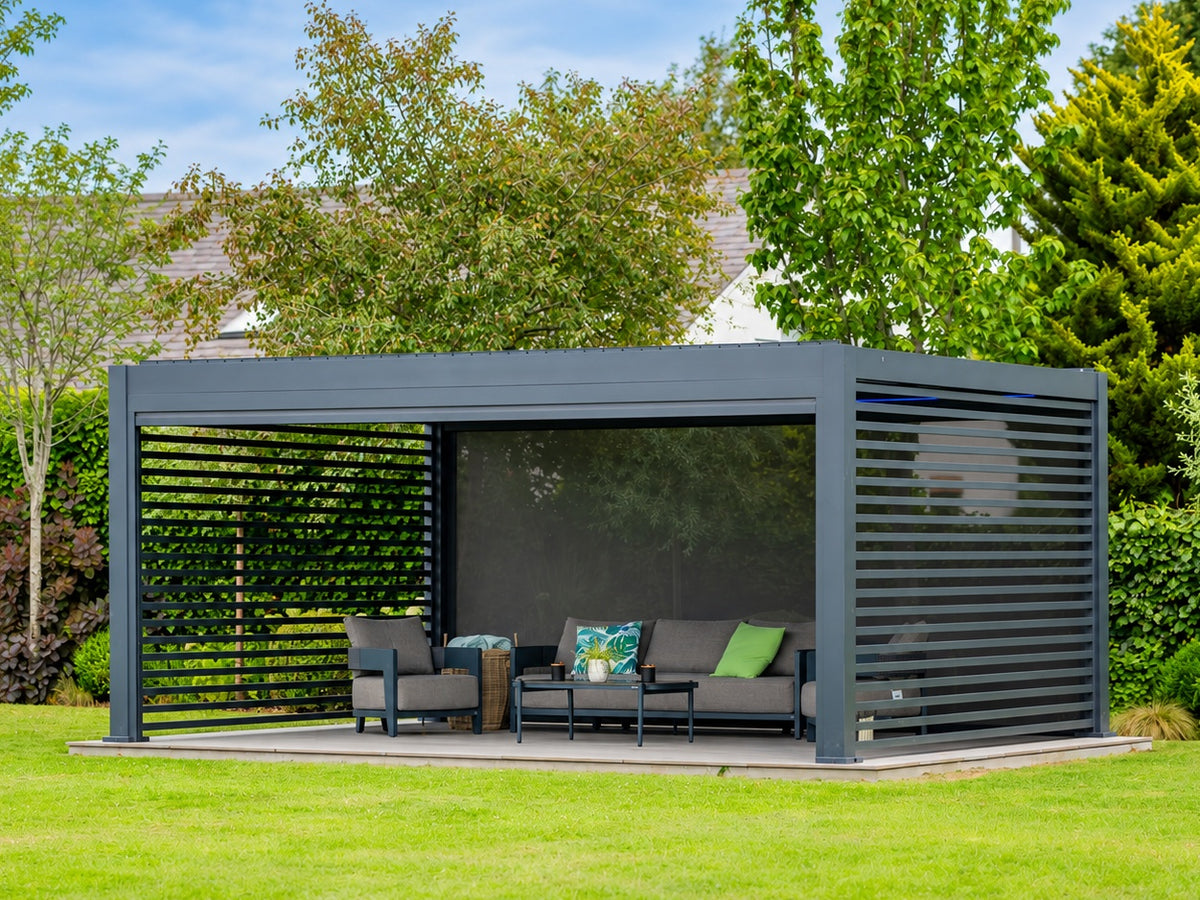

Make your Tora work for your garden. Add retractable screens for privacy, fixed slatted walls to define the space and heating for cooler evenings.

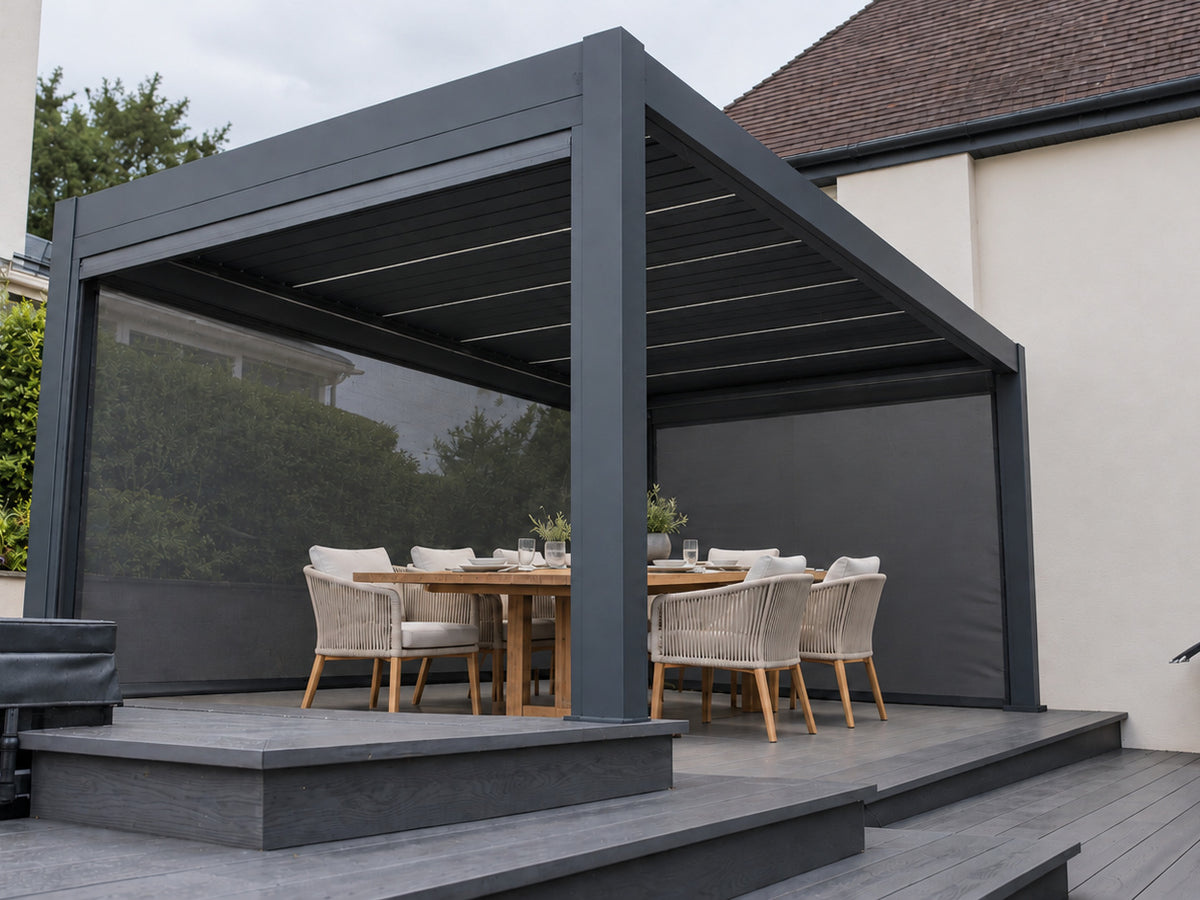

Editorial close-up of a partially lowered Tora privacy screen, bottom rail and anthracite frame

Adjust your privacy

Create a more private place to dine, lounge or spend time together beneath your Tora. Lower the screens for extra shade and privacy around your seating area, then raise them to enjoy an open view of the garden whenever you choose.

Choose each opening separately, keeping entrances clear and screening the sides that need it most. Manual and electric options vary by opening width, so you can create a combination that suits your pergola, garden and everyday plans.

  • Retractable shade and privacy
  • Manual and electric options
  • Choose each side individually
Choose your screens

Choose how your pergola is installed

Choose our in-house LuxSol team, our trusted installation partner or self-installation. Check your postcode to see the options for your pergola.

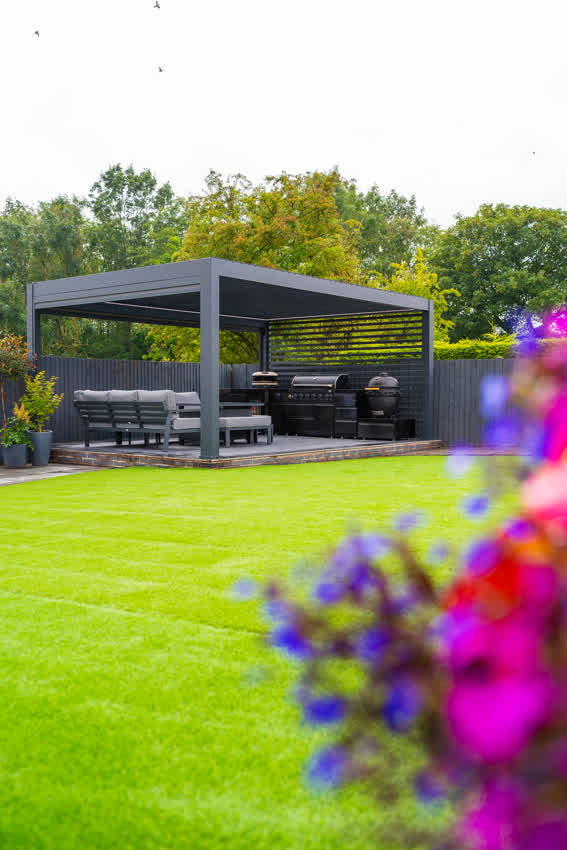

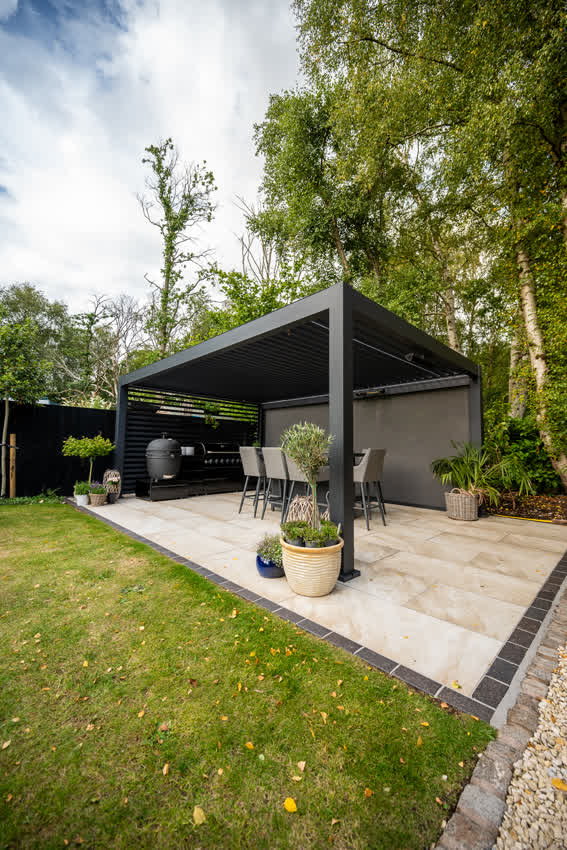

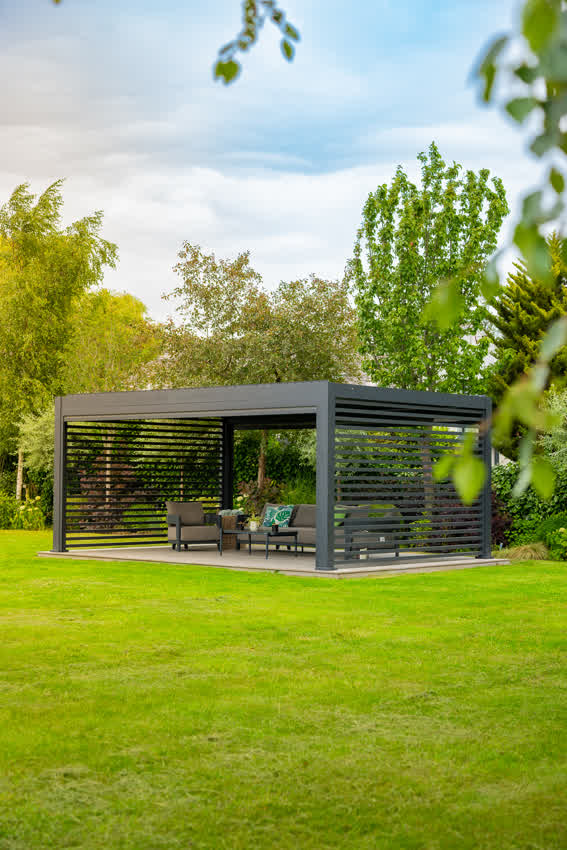

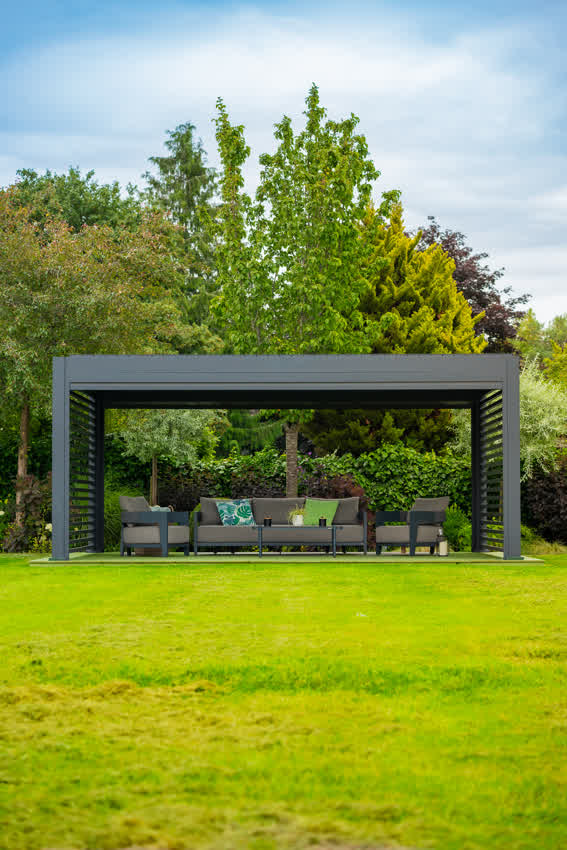

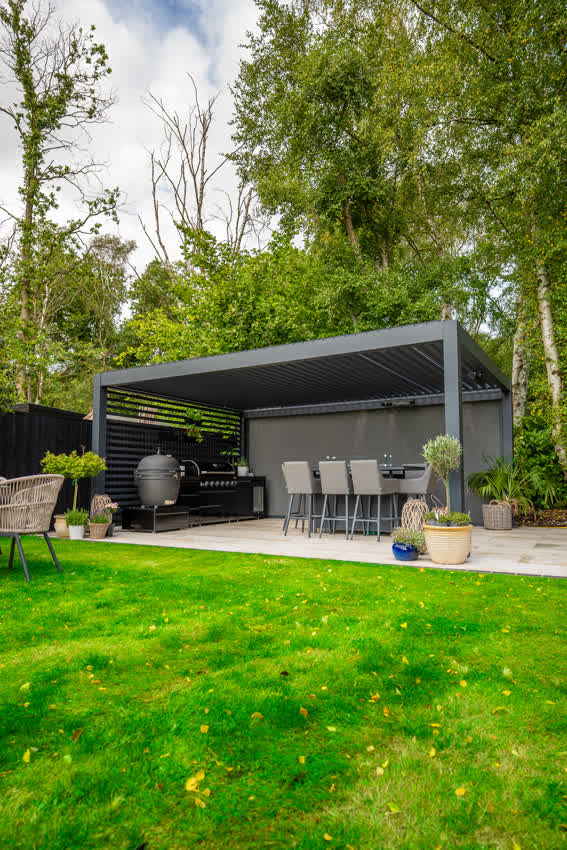

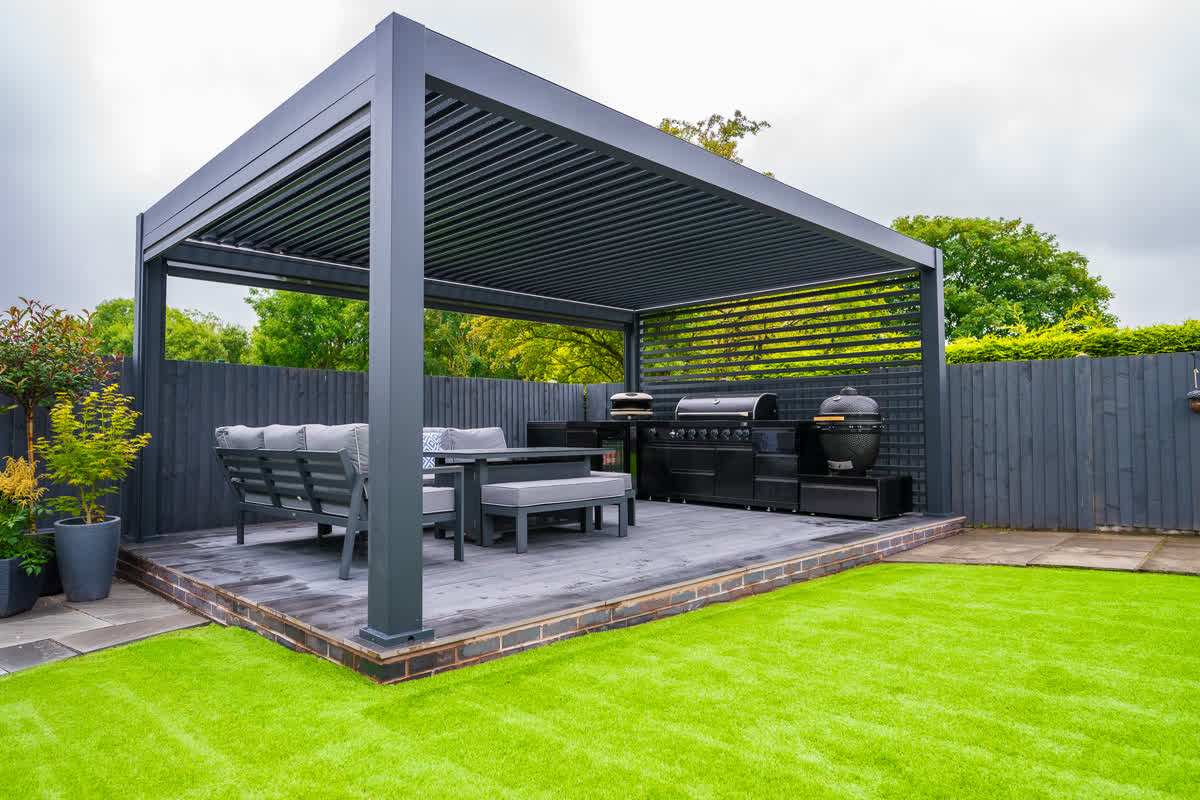

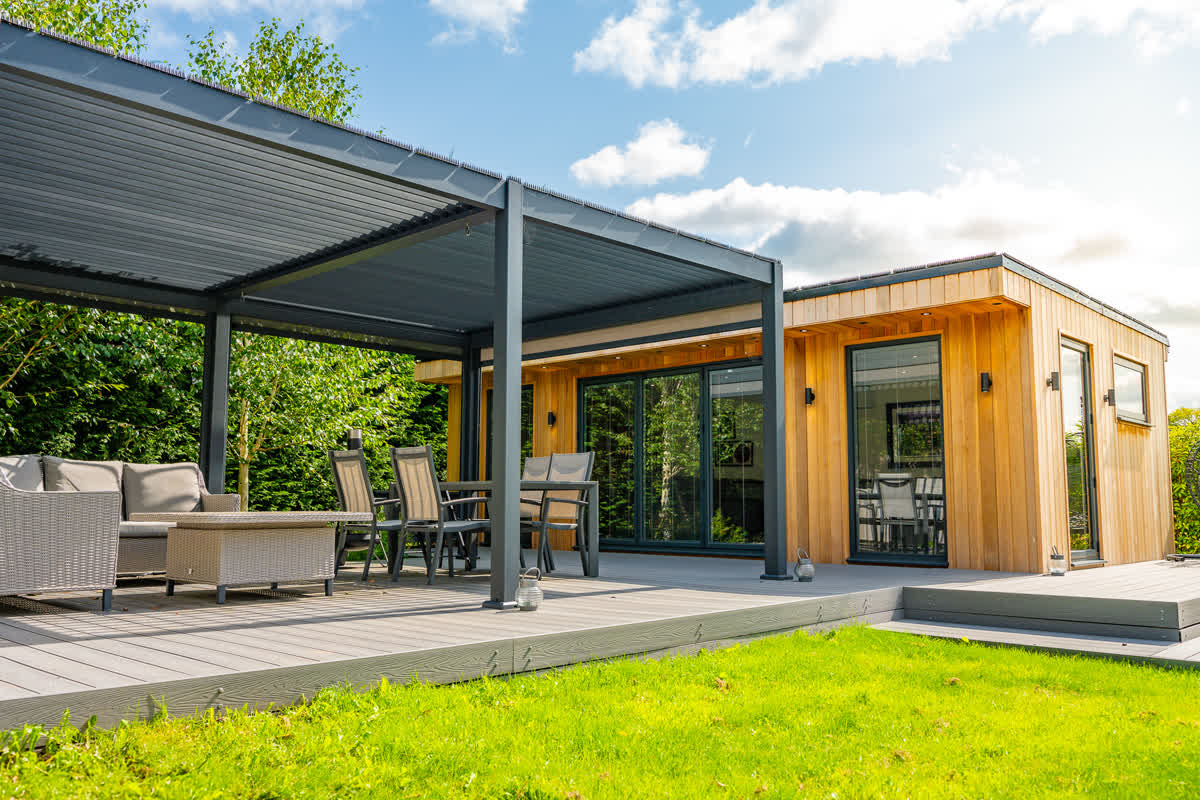

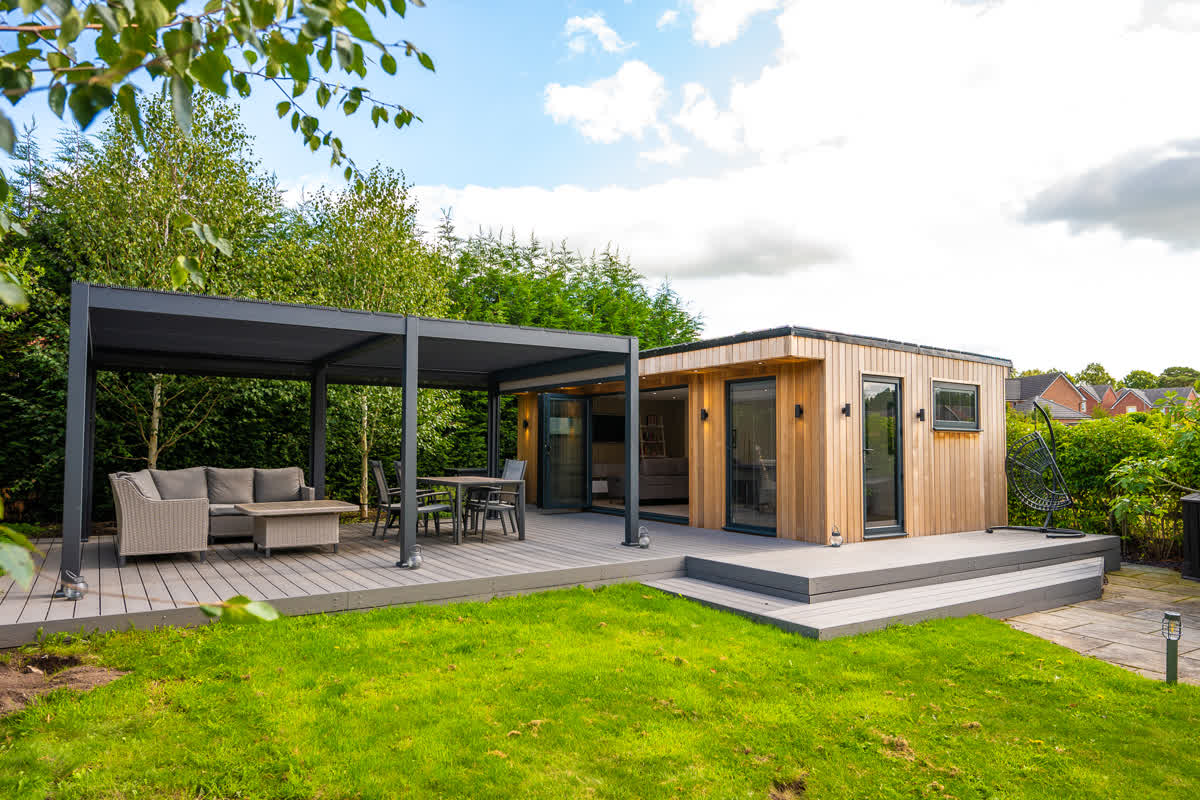

Real Tora pergola installed in a customer's garden

Installed by LuxSol

Our Cheshire-based team fits your pergola and selected accessories. Available within 60 miles of our Sandbach showroom, subject to your postcode.

Pergola Installations

Our trusted installation partner contacts you to arrange fitting. See the guide price in the builder, with payment made directly to the installer.

Self-installation

Arrange your own fitting using the supplied instructions. Plan for competent installers, suitable lifting help and secure anchoring to your prepared base.

Check installation availability

Prepare your base

Prepare a level, load-bearing base and anchor the posts to suit your chosen size.

Check your access

Plan a clear delivery route and enough working space around the installation.

Plan your power

Plan a suitable electrical supply for the roof and lights before installation.
